Volvo Camshaft & Crankshaft Tool Kit
Exclusively designed to properly Secure and Align the cam and crankshaft
during R and R of cylinder head assemblies on (5) and (6) cyl engines.
Also for the proper installation of camshaft cover to the engine head and useful when replacing camshaft seal.
Applicable: Model - 850, 960, S70, V70, S90, V90, S90, �92 V90, S90, �92 and newer.

V81350
Tappet Depressor used for preloading cam followers.

Trailing Arm Bushing Tool Set
For efficient R&R of rear trailing arm bushings.
Applicable: All Volvo 200 series.
Please read: Also included in the price of this kit is the component
pictured (upper left) Item number

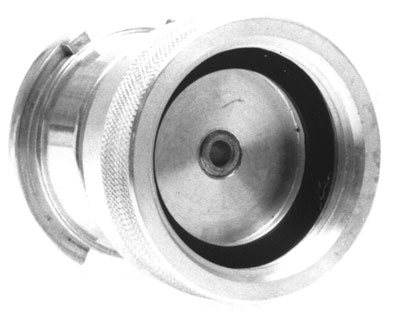

Expansion Tank Adapter
VZ25
Tank Adaptor used for pressurizing the liquid cooling system.
All Volvo with "MALE" threads on filler neck of expansion tank.

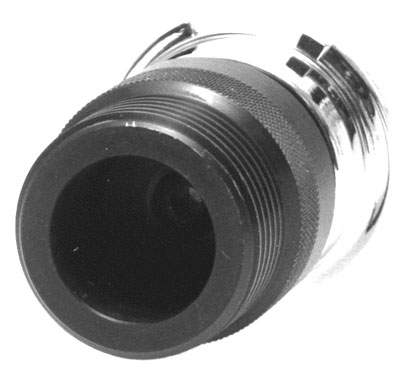

Expansion Cap Adapter
VZ26
Used for checking BLOW-OFF pressure or leakage of expansion tank cap.
Applicable: Volvo.All with "FEMALE" threads on filler neck of expansion tank.

Oil Seal Arbor V515
Arbor above used for the proper installation of oil seal
on the flywheel side of the crankshaft.
Applicable: Volvo
B21, B23, B230.

Oil Seal Arbor V511
Arbor (above) used for the proper installation of oil seal
on pulley side of crankshaft. Applicable: Volvo engine - B230, B234

Oil Seal Arbor V510
Arbor (above) used for proper installation of the oil seal
on the pulley side of crankshaft.
Applicable: Volvo engine - B21, B23, B230.

Arbor Oil Seal Installer
Sir Tool V 520
Arbor needed for the proper installation of cam shaft oil seal.
Applicable:Volvo B21, B23, B230.

Tappet Depressor needed for preloading cam followers when exchanging valve adjusting shims. Applicable: Early model VW 4 cylinder water-cooled gasoline powered engines.

Tappet Depressor
Sir Tool VA 6009
Tappet Depressor needed for preloading cam followers when exchanging valve adjusting shims. Applicable: Late model VW/Audi 4 and 5 cylinder gasoline powered engines. Volvo and Audi diesel powered engines.

Diesel Injection Pump Locking Pin
Sir Tool VA6013
Locking Pin crucial for securing Bosch diesel injection pump sprocket from rotating during R&R of cam shaft drive belt. This Locking Pin also assists in locating the general timing position of pump. Applicable: most VW/Audi diesel engines.

Camshaft Locking Plate 2065A
Used for securing the cam shaft from rotating
and maintaining correct timing position during R&R of cam shaft drive belt.
All VW -Audi Diesel and Volvo D24 6 Cylinder 2.4L diesel �81-�86 engines.

Diesel Tool VA6015
Used for accurate adjustment of Bosch diesel injection pump.
This Dial Gauge Holder screws into the back of the
injection pump and comes equipped with a 10cm dial indicator extension pin.
This tool is to be used in conjunction with a dial indicator.(not included).
Applicable:
All VW/Audi Diesel and Volvo 6 cylinder 2.4L diesel �81-�86 engines.

VA6005
Injection Pump Tool
Puller used for the proper extraction of injection pump drive gear.
Applicable:VW Audi diesels Excluding TDI

Counter Holder needed for R&R of front crank shaft pulley.
ApplicaBLE: VW -Audi with 5 cylinder engines 80, 90, Quattro, 4000, 5000, Quantum.

Extension Wrench needed for R&R of front crankshaft bolt.
ApplicablE: VW/Audi models with 5 cylinder engines
80, 90, Quattro, 4000, 5000, Quantum.

32 X36mm with an 8mm overall thickness and a length of 12 inches for proper leverage.
Needed for R&R of fan clutch hub nut.
Applicable:

Spanner Wrench Set needed for R&Rb of oil lines. This 4-pack set includes (1) each of the following wrench sizes: 27mm, 30mm, 32mm, 36mm.

Designed to extract bearings and bushings with an I.D of 12mm and up to 15mm
For Bearing use only!!
Not Bushings.
Applicable: All BMW and most Asian and compact Domestic models exluding Suzuki and Geo

Designed to extract bearings and bushings with an I.D of 15mm and up to 20mm
For Bearing use only!!
Not Bushings.
Applicable: Most Foreign and Domestic mid-to full size vehicles.

Designed to extract bearings and bushings with an I.D of 17mm and up to 30mm
For Bearing use only!!
Not Bushings.
Applicable: Medium -to heavy duty vehicles and trucks.

Separator needed for disassembly of pitman arm type tie rod ends without tearing the ball joint boots.

Valve Stem Seal Pliers
Needed for the proper extraction of stem seals. The inside grooves on the tips of this plier allows the firm grip of both O.E. and aftermarket seals
Applicable: Overhead Cam engines.

Heavy duty Allen socket designed specially for R&R of gearbox drain plugs.
Also for a variety of other applications.
1/2 Drive
Applicable: Most European Vehicles.

Needed for T.D.C. on any gasoline powered engine.
Simply unscrew a spark plug and twist the rubber hose part of this tool into the spark plug hole. As you rotate the engine with a turning bar, the piston forces air through the whistle part of this tool. Once the whistling stops the engine is at T.D.C.

22mm Crows Foot with 3/8" drive, needed for R&R of Oxygen Sensor situated within a confined area. No need to snip the wires leading to the unit when all you want to do is check the sensor.
Applicable: Most models.

22mm Heavy Duty Socket with 3/8" drive. This Heavy Duty Socket is a must when trying to remove a rusted Oxygen Sensor situated within a confined area.
Applicable: Most models.

Pressure Adaptor needed for pressuring the master cylinder or clutch slave cylinder reservoirs. Used in conjunction with a pressure bleeder. Comes with a 1/4-18 NPT threaded opening.
Applicable: Most every European model.

Valve Shim Pliers
Needed for the R&R of valve adjusting shims.
Applicable: Overhead Cam engines.
