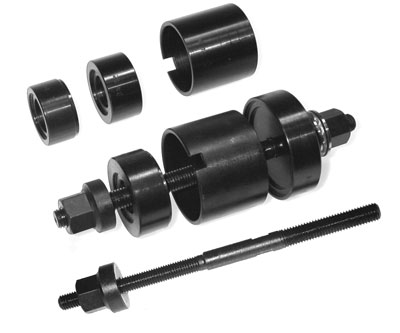

Kit for easy On-The-Car R & R of Front control/track arm bushings.
This Kit eliminates the need to disassemble
the whole control-track arm from the car, in order to extract and then install a bushing with a hydraulic press, while the rest of the bushings on the arm are in good condition.
This kit incorporates thrust bearings on every nut, ensuring longevity of the tool and will pay for itself. Applicable: BMW model 5 series ‘82 newer, 6 series, 7 series ‘88 newer,
8 series ‘91 and newer. Comes complete with instructions.

BMW 3026  - For the proper R&R of metal-clad rubber mount bushings of rear axle carrier sub-frame.
This special service tool has been “Field Tested” and redesigned.
Incorporating a thrust bearing to ease the pulling -pushing action,
Reduces the wear and tear of the tool.
This Kit comes complete with all the components to get the job done right.
Applicable: Chassis - E23, E24, E28, E30, E32, E34, E36.
On the car application! Comes with instructions.

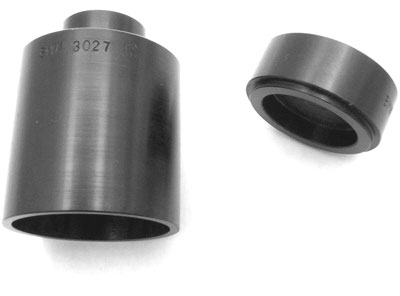

BMW 3027  - This kit is used for the efficient R & R of Rear A-Arm Metal Clad Support Bushings.
Applicable:1982 & newer. Designed to work in conjunction with a C-Clamp.

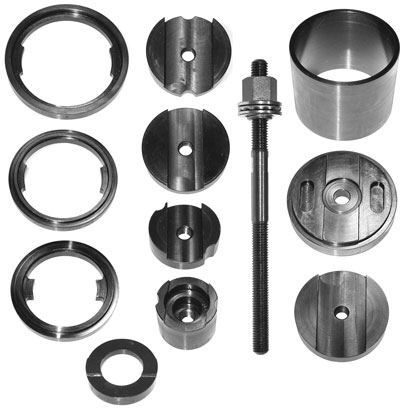

b90-bmw Designed to easily remove and install
the wheel bearing and hub of spindle assemblies.
Applicable: Most every 3, 5, 6, 7 and 8 series models from the early '80 to present
with S.R.W.B and I.R.S., including A.W.D.
This is the best value for R and R of the Rear Wheel Hub & Bearing of German vehicles,
as well as Front Wheel Hub & Bearing. Asian, Domestic and German vehicles.
Sub kits are available also.

BMW 3039  -Tool is used for
Adjusting toe-in of rear wheels.
1/2" drive. Applicable: Chassis - E36.

BMW 3003  - Control Arm Press Arbor Kit
This set is used for the R & R of control/track arm bushings.
Used in conjunction with a hydraulic press.
Applicable: BMW cassis E24 and E28.

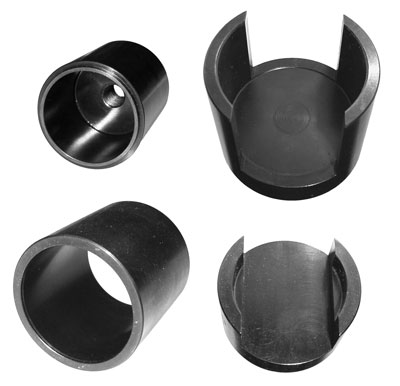

BMW 3038  - BMW E36 PRESS ARBOR KIT
CONTROL ARM/BALL JOINT TOOLS
For removing and installing the outer wheel control arm ball joint.
Use it together with C-Clamp (TW 35504 or OTC 7249) on the car,
or with your hydraulic press.
Applicable: E36 models.
(Ball Joint # 31126758510)

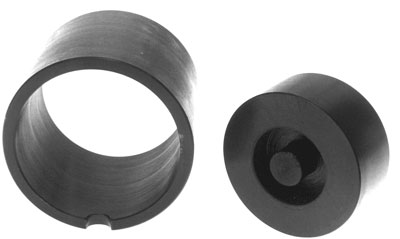

BMW 3028  - INNER BALL JOINT REPAIR
Set used for proper removal and installation of inner ball joint of control arm.
For on the car repair, requires this set to be used in conjunction with a C- Clamp.
Or to be used in conjunction with Hydraulic Press
Applicable Chassis: E30 and E36.

P 243  - Super Duty 8mm Allen
Extra Long 3/8 Drive Socket
This 8mm Extra Long Allen is a solid one piece construction.
Overall length is 7.75 inches. For R & R CV Joint Bolts. Allows easy access w/o damage to rubber boot on drive hub of gearbox.
Used on Most BMW

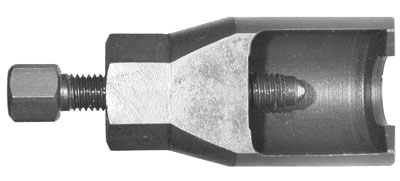

BMW 3029  - Heavy Duty Separator
Needed for the proper disassembly of ball joints of drag links and tie rods.
Applicable: Most BMW models. BASE OF OPENING=21.5mm

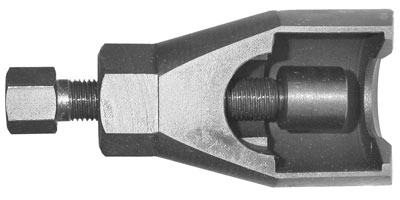

BMW 3030  - Heavy Duty Extractor
Needed for the proper disassembly of ball joint from lower wishbone.
Applicable: Most BMW models. BASE OF OPENING=25.5mm

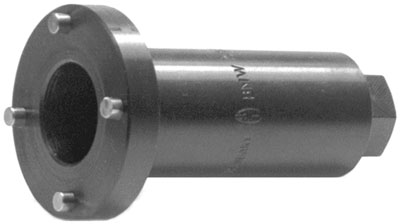

BMW 3014  - Pin Wrench Socket with 1/2” drive
Used for R&R of threaded ring retaining nut of strut tower
on front shock absorber.
Applicable: BMW chassis
E3, E9, E21, E23, E24, E28, E30, E32, E34

266h  - Separator used for disassembly
of Pitman arm type tie rod ends without tearing the boots.
Opening size is 18mm. Most VW - Audi - Late Porsche models.

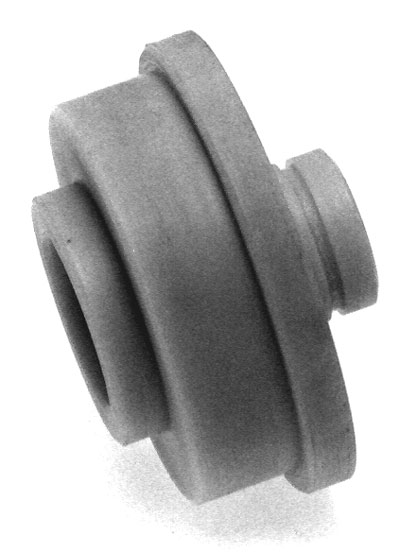

BMW 3000  - Arbor needed for the proper installation of oil seal
on differential output shaft
Chassis: E23, E24, E28, E30, E32, AND E34.
